Servo 动力气缸 使用伺服气缸，可实现精密位置控制、速度控制 彻底消除现有液压、气压的漏油，及低温下无法使用的问题 使用2台以上时，可同时控制 |
| Servo Cylinder Explain | ||
| MODEL | Major characteristics | |
| CWPiSV08~50 |
· Precise position control, speed control available for using servo cylinder · Synchronized control available when 2 or more units are used · Various servo motor capacity used corresponding to the set thrust and speed · High thrust at small size by equipping planetary decelerator (OPTION) · Simple form and accurate position control by applying magnetic detection sensor · Can equip any servo motor the user wants (compatible with all domestic servo motors) · BALL SCREW adopted for excellent durability · Clearly resolved existing issues of hydraulic/pneumatic such as oil leakage, unavailability at low temperature, etc. · Available for customized made-to-order suited to the usage environment of the user · CwpiSV 150 model is capable of high thrust of at most 1,000kg.f 50mm/sec · Green environment actualization to provide clean work environment and space · 2016-07-25CwpiSV 300 model is capable of high thrust of at most 2,000kg.f 50mm/sec |
|
| CWPiSV 150 | ||
| CWPiSV 300 | ||

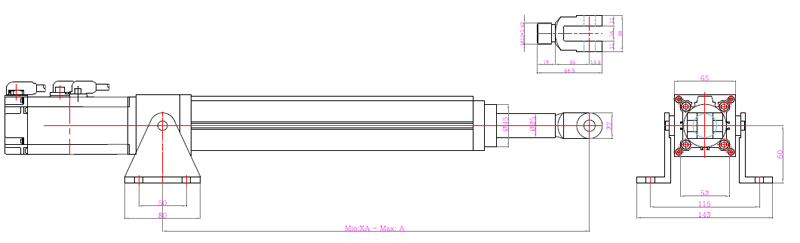

| CWPiSV08~50 |
 |

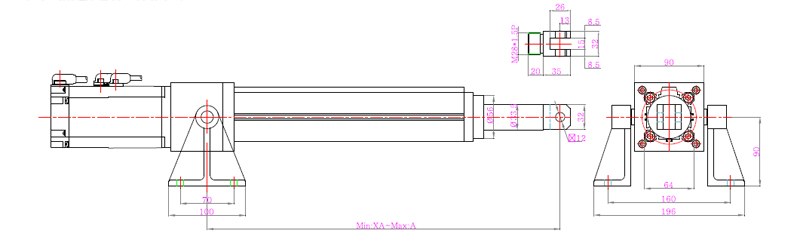

CWPiSV 150 |
 |

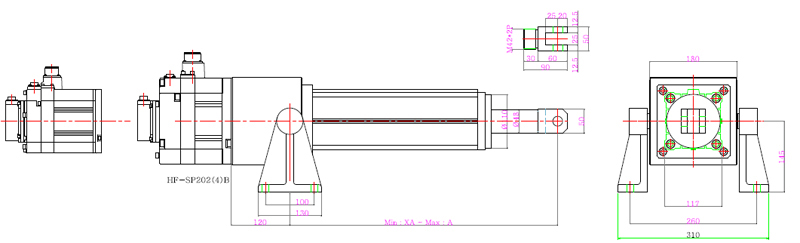

CWPiSV 300 |
 |
|
