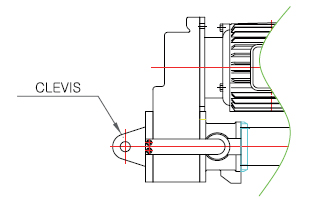

Usage of CLEVIS (classification code-C)
CLEVIS is usually used in case the cylinder cannot be fixed on the floor for operation.
Usually installed in straight line with the cylinder

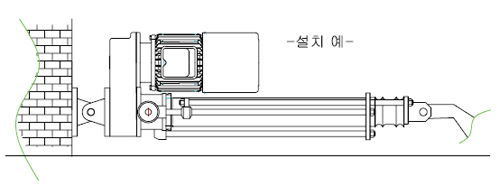

※Refer to the figure of the installation example.
Cannot be used in combination with MOUNT fixed on the floor.
|
|
|
 |

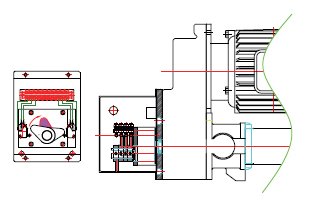

Usage of Limit-embedded (classification code-N)
Basically, position control limit switch is often used as external type.
When installed at a location with a lot of dust or outdoors, internal type
limit is used.
Since the cylinder is not exposed outside, it can simply be seen from the exterior.
Caution for usage
The limit switch is not seen from the outside, so regularly open to
check the position and calibrate.
|
|
|
 |

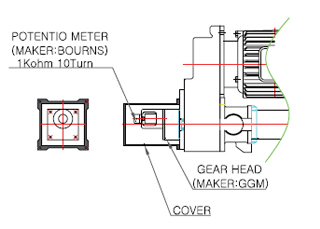

Usage of potentio meter (classification code-P)
Potentio Meter transmits resistance value when the cylinder operates,
and calculates where the position is.
Unlike the encoder, it shows the position as is for re-operation after power outage.
It is mainly used for adjusting the amount when opening/closing GATE, HOPPER, DAMPER, etc.
|
|
|
 |

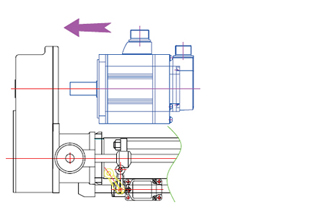

Usage of servo motor (classification code-sv)
The servo motor is capable of precise control, position control, speed control, synchronized control, etc.
This can be combined with cylinder and used in various areas.
It can reduce the equipment cost
in the field of automated industry in combination with high-precision ball screw.
All servo motor that the user wants can be equipped.
|
|
|
